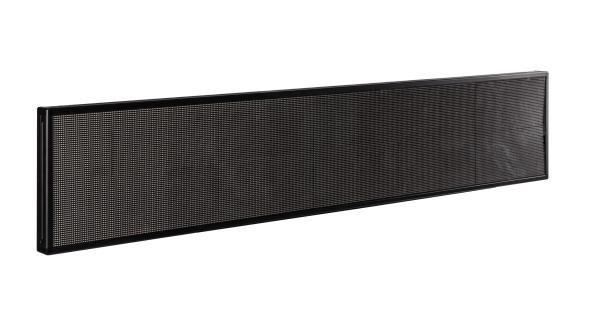

The DYNAMICLED 22.4 display is an innovative and dynamic solution with high visibility to display messages about your products and services at indoor events.
Datasheet Get a quote2112 x 384 mmscreen dimensions
6 mmpitch
352 x 64resolution
1500 cd/sqmbrightness
| Reference * | BAN-22.4 |
|---|---|
| Screen dimensions (H x V) | 2112 x 384 mm |
| Frame dimensions | 2202 x 474 x 90 mm |
| Pitch (H x V) | 6 mm |
| Resolution (H x V) | 352 x 64 |
| LED type | SMD |
| Brightness | 1500 cd/sqm |
| Beam angle | H : 140°/V : 80° |
| Refresh rate | 1500 Hz |
| Input | RJ45 |
| Media type | Text, Logo |
| Power consumption | Aver. 100 W/sqm |
| Power data | AC 220-240 V, 50/60 Hz |
| Waterproof level | IP 20 |
| Operating temperature | 0°/+40° |
| Material | Aluminium, Plexiglass, PVC |
| Weight | 17 kg |
| Frame color | Black |
(*) Customized models available.
Several display options
Set up and animate your messages with the user-friendly software to create the most attractive communication.
High visibility
With high indoor brightness and large display area you can easily catch eyes and your messages are seen by all.
Easy installation
Whether hanging or integrated into a wall partition or a piece of furniture the biggest display of our DYNAMICLED series remains easy to install and perfect for rental purposes.

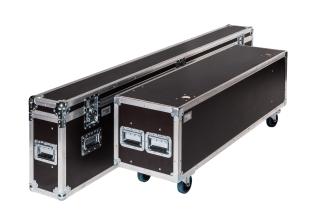

Flight-case
